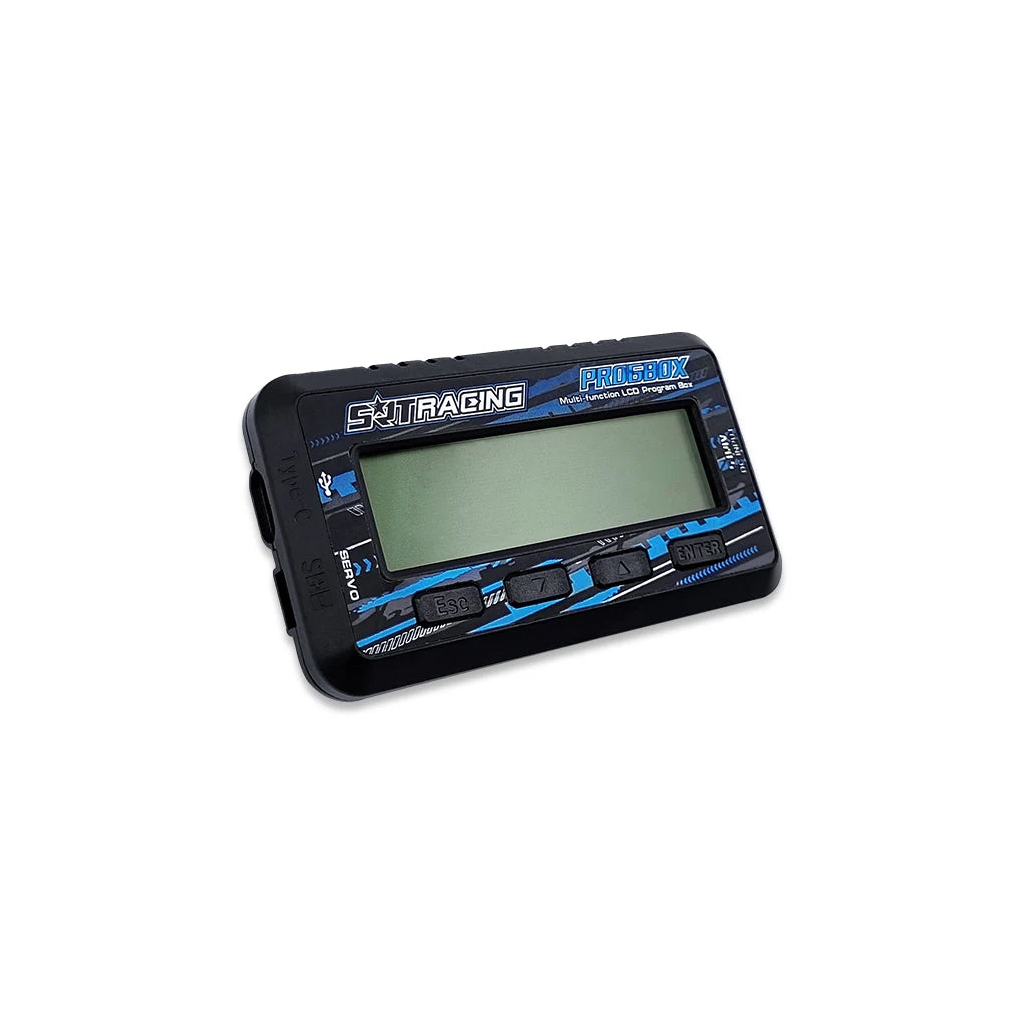

Schumacher SRT Program Box SP-MX082

Description

Product Functions:

– Servo parameters setting
– Connect the computer to set the servo
– Servo testing

PRODUCT SPECIFICATIONS

– Operating Voltage:5-8.4V DC
– Idle Current:<20mA
– Operating Temperature:0-40°C
– Storage Temperature:-10-60°C
– Storage Humidity:20-75%RH
– Weight:40g
– Dimensions:87.0×47.0x12.0mm

KEY FEATURES

– Program box SP-MX082 has built-in high-performance 32-bit microprocessing, small size, simple and convenient operation.
– Connect the servo through the program box for parameter setting, so that the servo can adapt to different track conditions.
– Program box can store 20 sets different servo parameters.
– The program box has the function of central point adjustment, which makes the left and right angles of the chassis more consistent.
– Servo Testing: servo board band and narrow band PWM testing function.
– DEFAULT: one-key restore factory parameter function.
– Apply to a variety of SRT servos with programming marks, such as:

BH815S,BH922S,BH927S,CH712S,D1S,W35,W45,T45,T55,T65,T75,BHX6,BHX8, BHX9,Min6
