Multiplex ROXXY BL Outrunner (C50-55-45)

Description

FEATURES

• High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
• Smooth running thanks to large precision ball bearings
• Mounting possible on both sides
• 100kV
• 215W

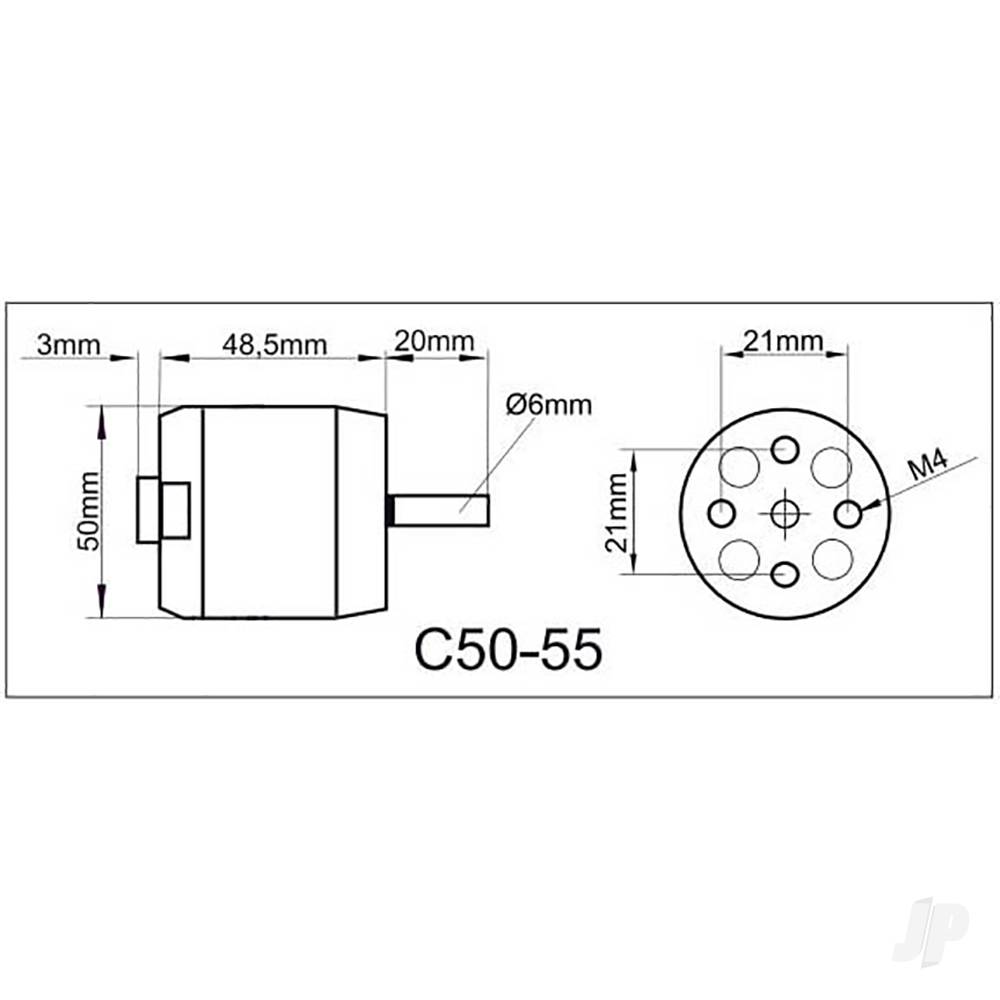

• 50mm motor diameter.
• 6mm shaft diameter.
• Voltage range: 10 – 12V

DETAILS

14-pole brushless outrunner motors

Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.

The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.

• Maximum copper fill ratio and superior neodymium magnets for high efficiency
• Large, precision ballraces ensure smooth running
• Can be mounted by either end
