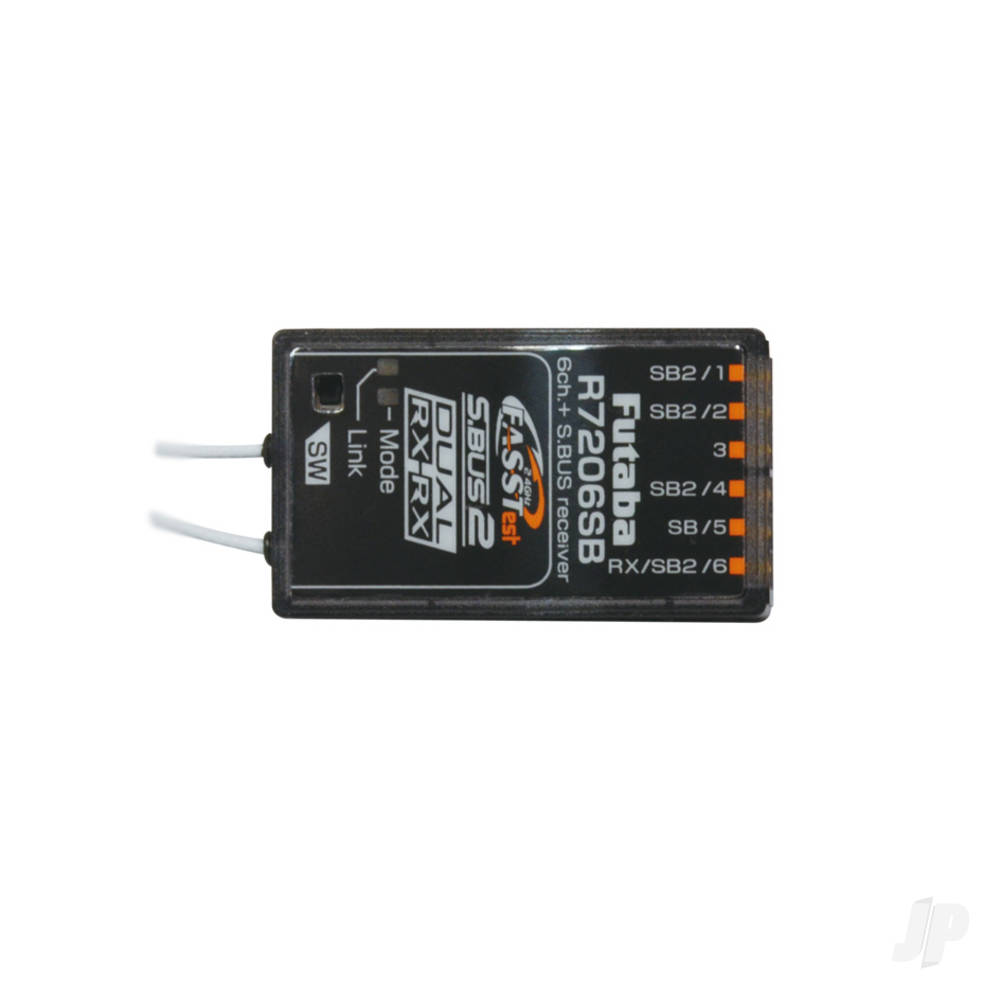

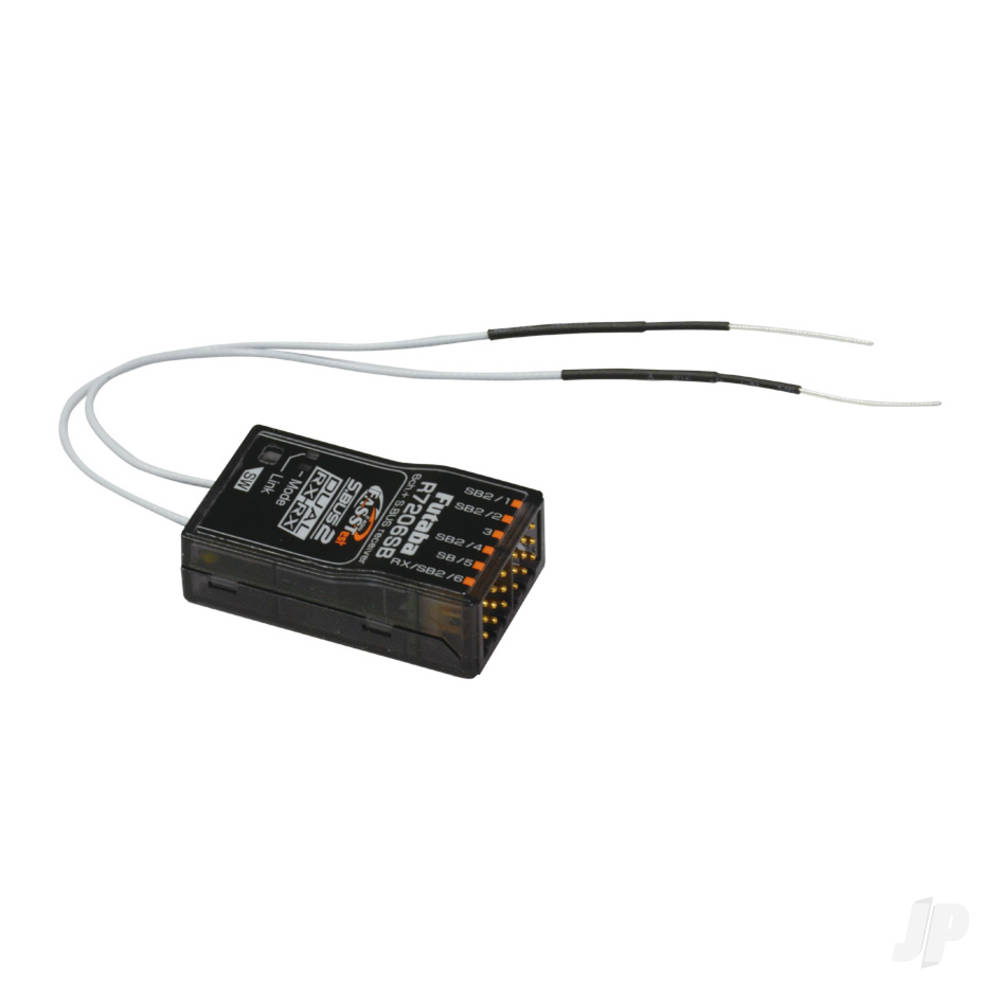

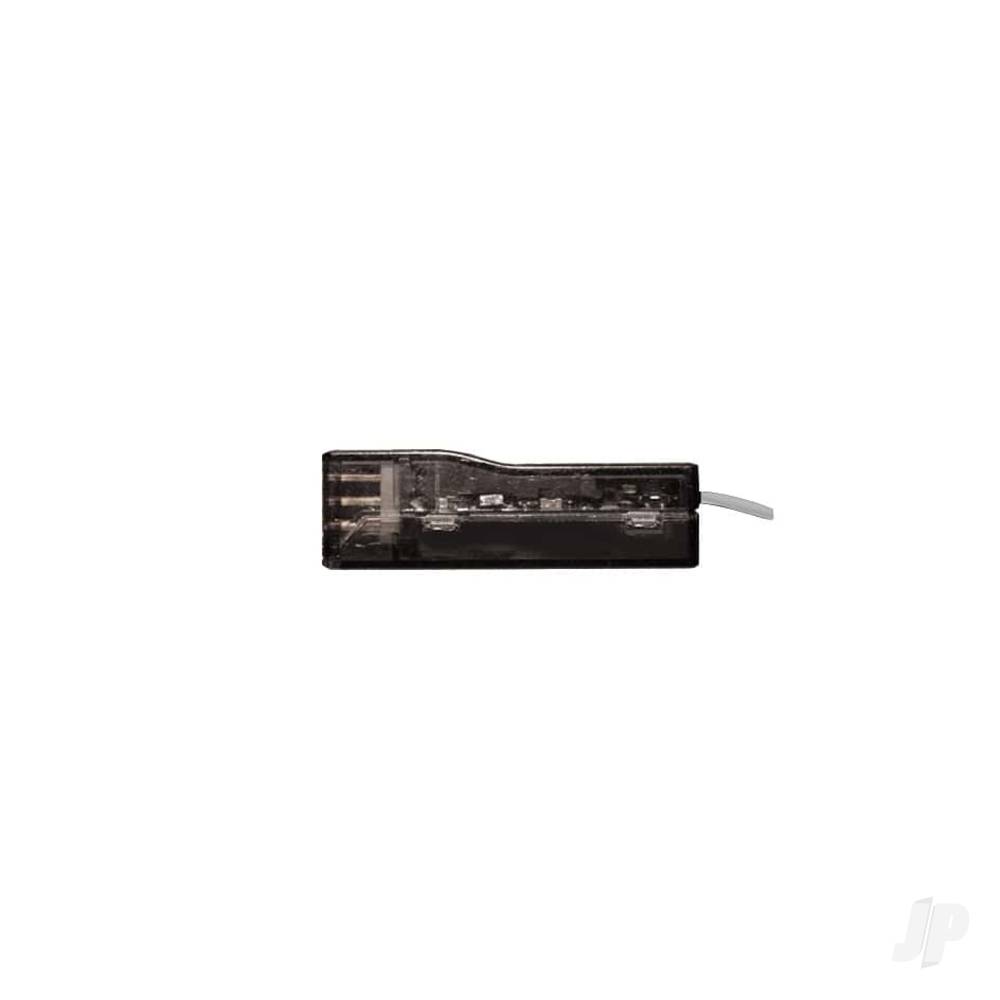

Futaba R7206SB 6-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest

Description

FEATURES

• Input Voltage: 3.5-8.4 V

CONTENTS

• 1x R7206SB Receiver

DETAILS

R7206SB FASSTest 6-Channel/S.Bus/S.Bus2 Port Receiver w/Dual link

Bi-Directional Communication System for Aircraft Models

Size:
22.5 x 38.3 x 12.2 mm
0.89 x 1.5 x 0.48 in

Weight:
8.5 g
0.30 oz

Power Requirements:
DC 3.7V ~ 7.4V

Voltage Range:
DC 3.5V ~ 8.4V

Technical note:
The servo and SBus connections to this receiver are oriented with the Ground pin UP and the signal wire toward the bottom of the receiver!
