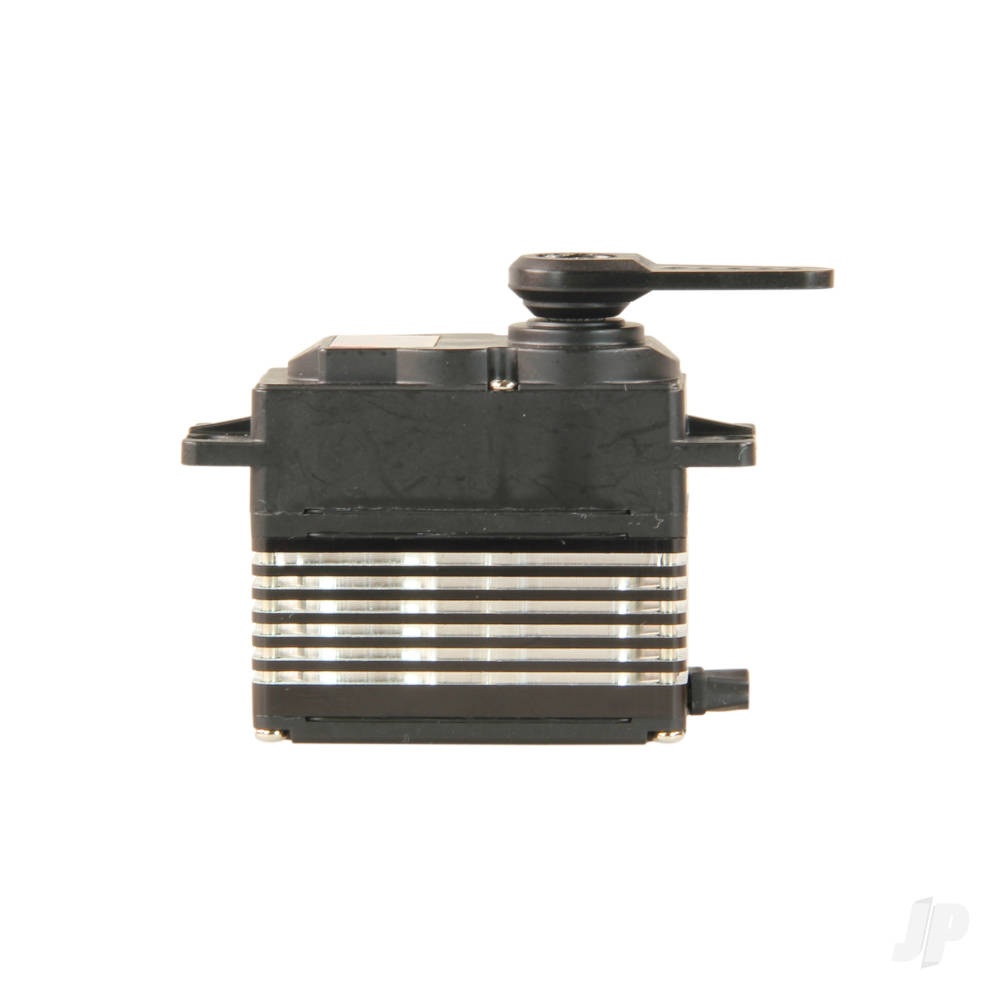

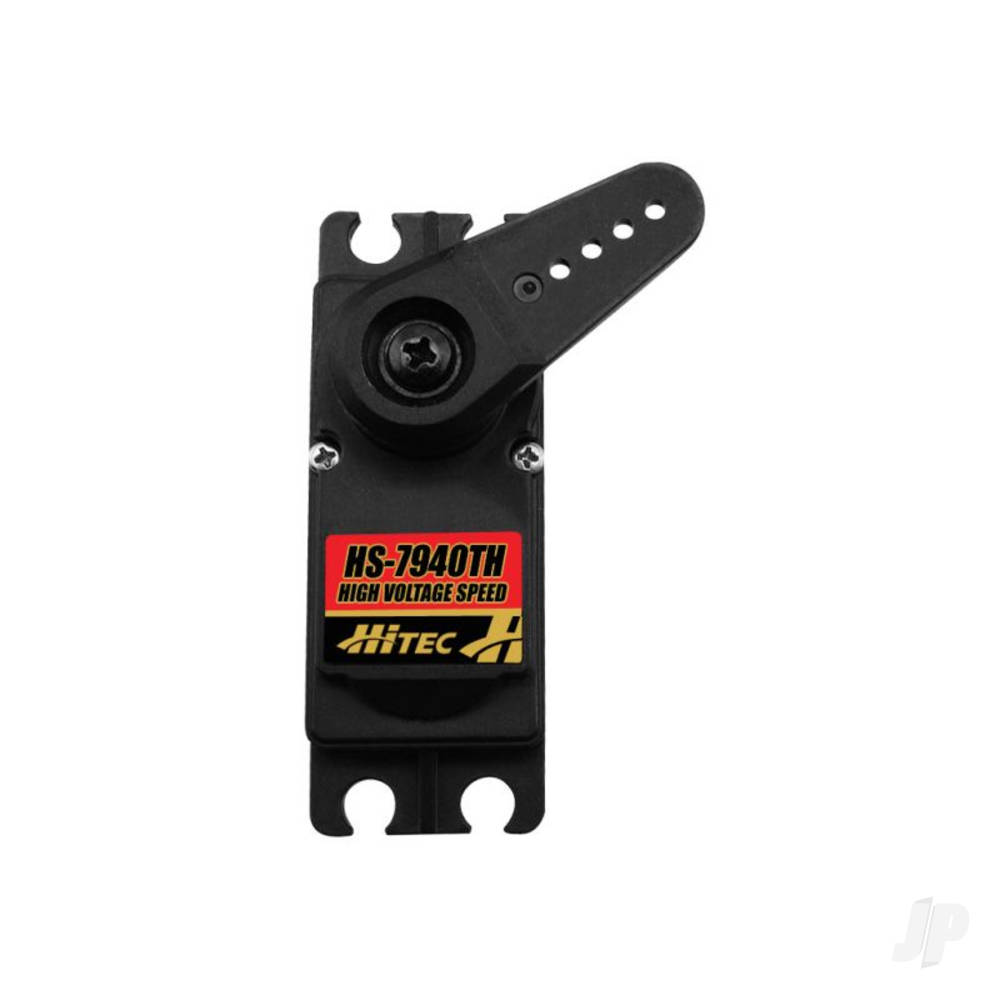

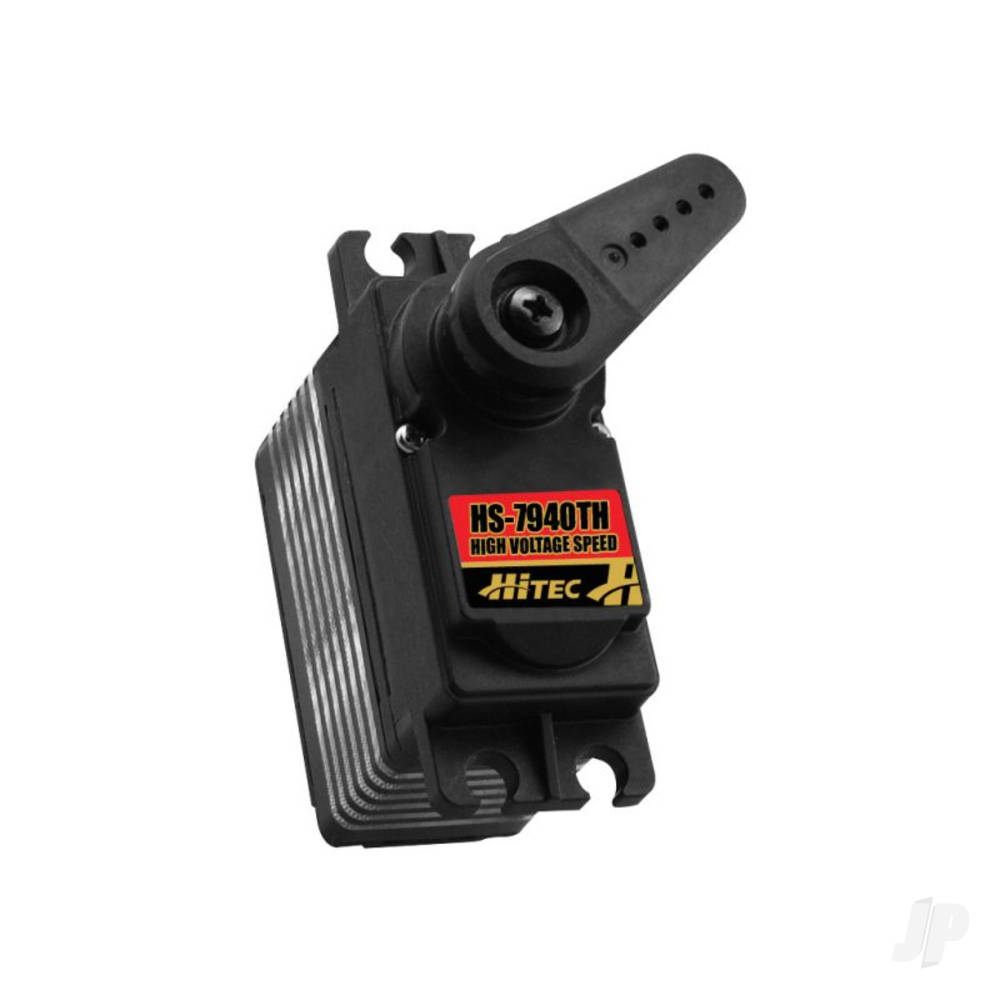

Hitec HS-7940TH Standard Digital Coreless Servo 65g 16kg/0.07s 6.0V – 7.4V

Description

FEATURES

• G2 Digital Circuit
• Titanium Gear Train (MK first gear)
• Ultra Performance Coreless Motor
• Heatsink Case
• (8) O-Rings for Water/Dust/Fuel protection
• Dual Ball Bearing Supported Output Shaft

DETAILS

Hitec’s fastest standard size servo the ‘Ultra Speed’ HS-7940TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution ‘G2’ second generation programmable digital circuit and our indestructible Titanium gears, The HS-7940TH has the performance and durability you’ve come to expect from a Hitec servo. Other features in the HS-7040TH include a 7.4V optimised coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7940TH has been designed for applications where speed and response are demanded. Perfect for High Performance Nitro and Electric Helicopters, Aircraft, Cars, and Trucks. Featuring a blistering transit time of .07 sec, but still maintaining a respectable 181 oz./in. of torque at 6.0 volts.

Programmable Features Include:

• – Dead Band Width
• – Direction of Rotation
• – Speed of Rotation (slower)
• – End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point
• Resolution* (default is high resolution)
• – Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
