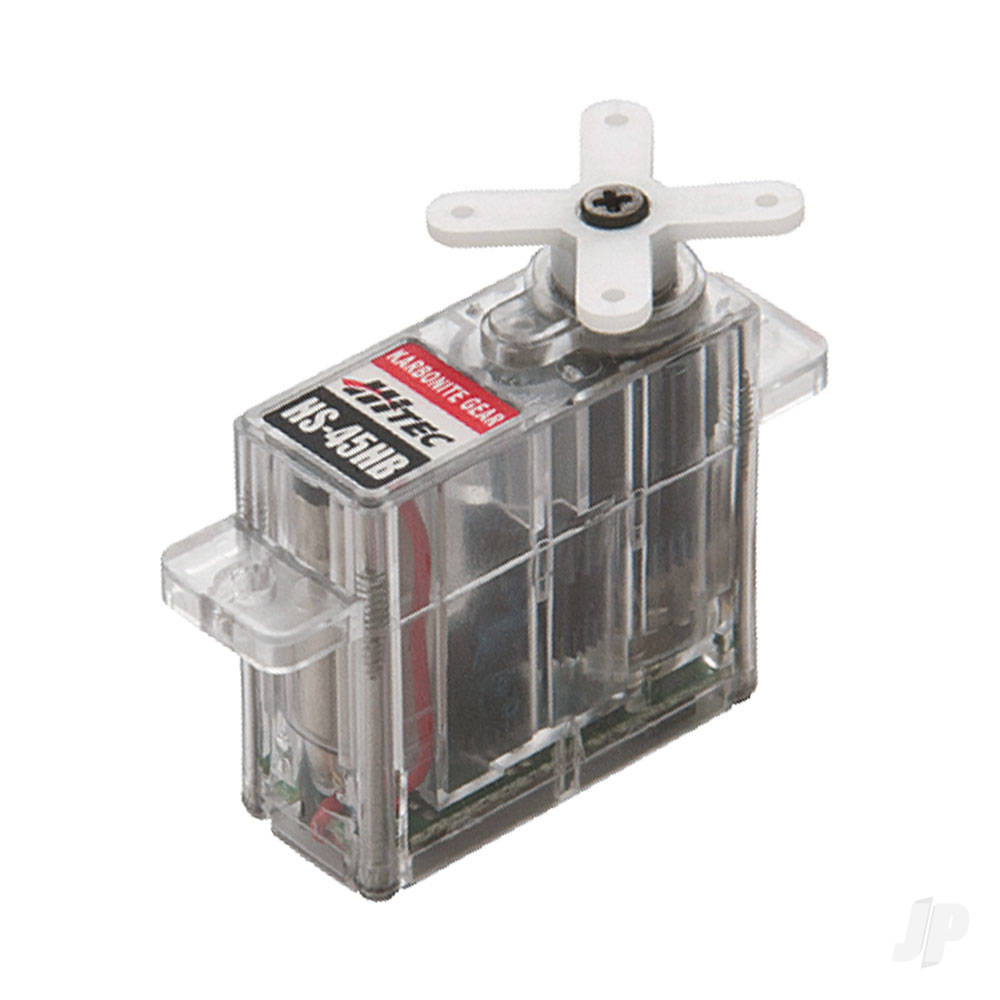

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
| Control System: | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range: | 4.8V – 6V |
| Operating Temperature Range: | -20°C to +60°C (-4°F to +140°F) |
| Idle Current: | 8mA |
| No Load Running Current (4.8V/6.0V): | 100mA/60° |
| Stall Current (4.8V/6.0V): | 440mA |
| Dead Band Width: | 5usec |
| Potentiometer Type: | 2 Slider/Direct Drive |
| Connector Wire Length: | 250mm (9.84 in) |
| Connector Wire Gauge: | 28AWG |
| Weight | 0.2 kg |
|---|
