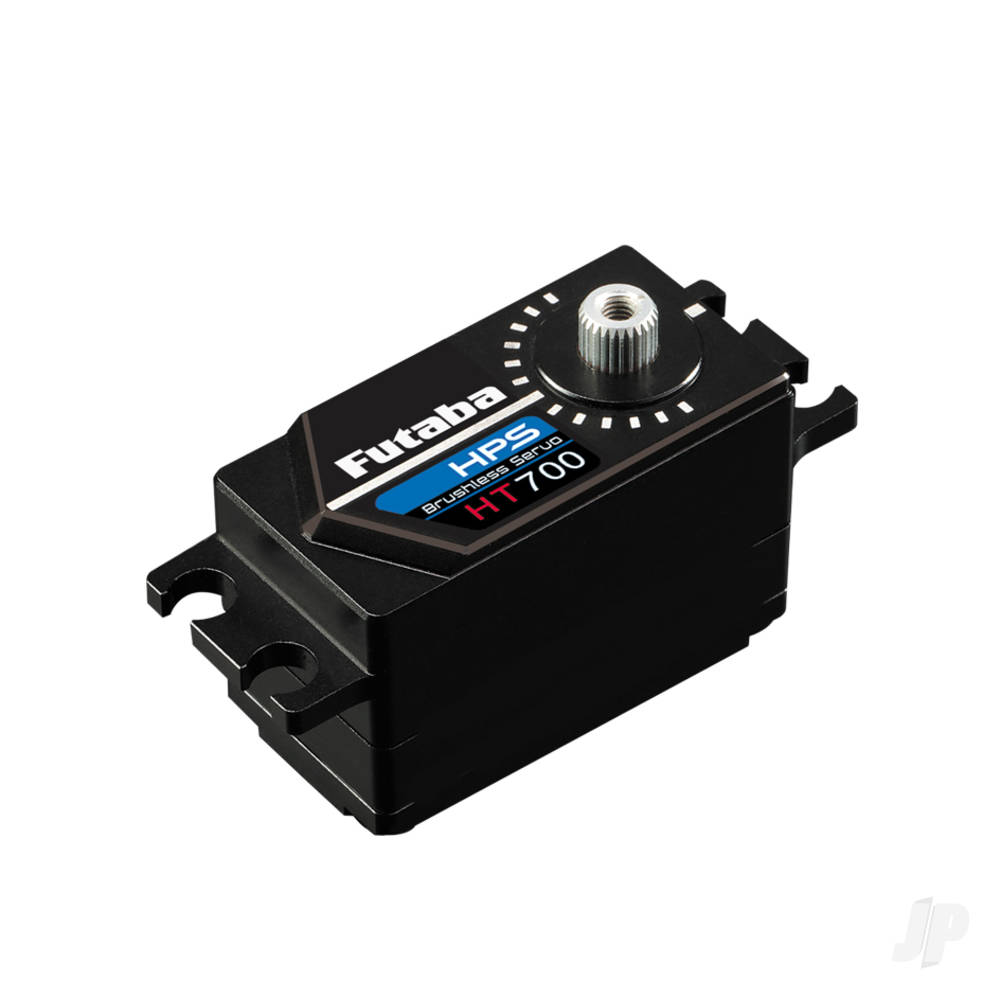

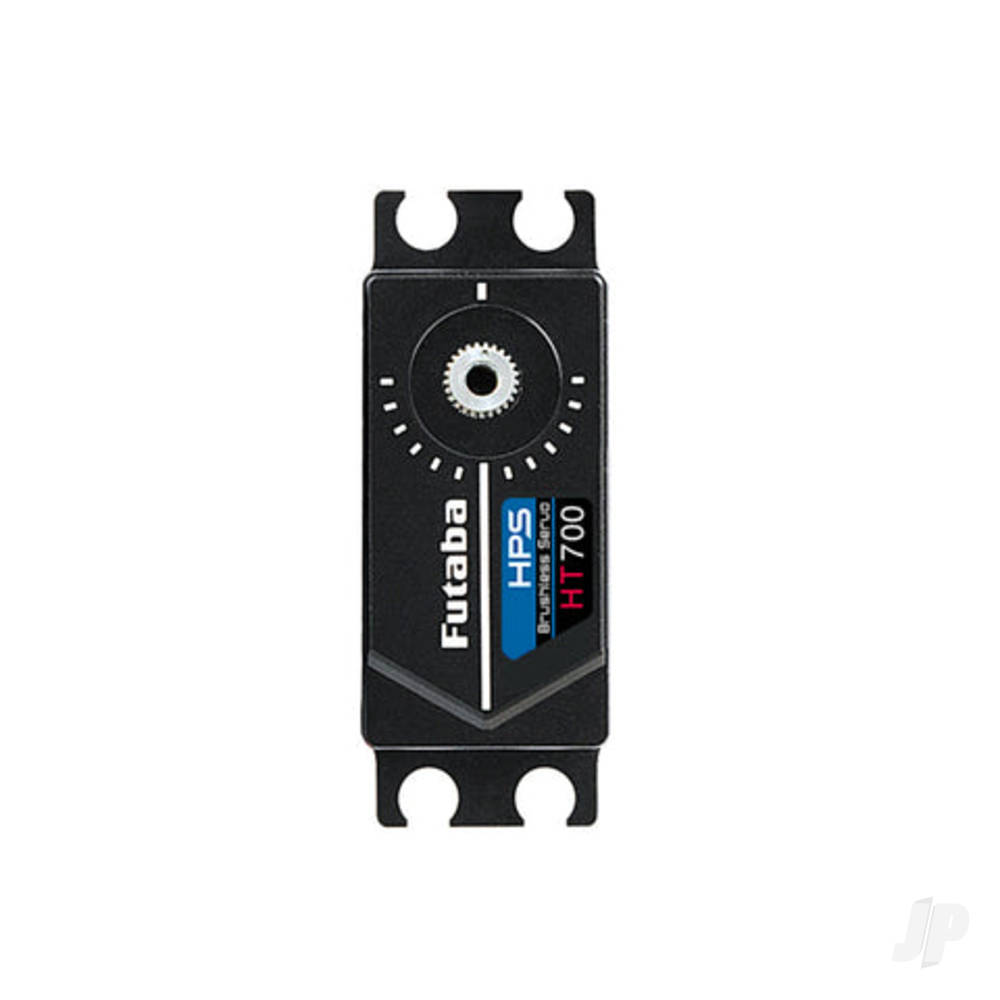

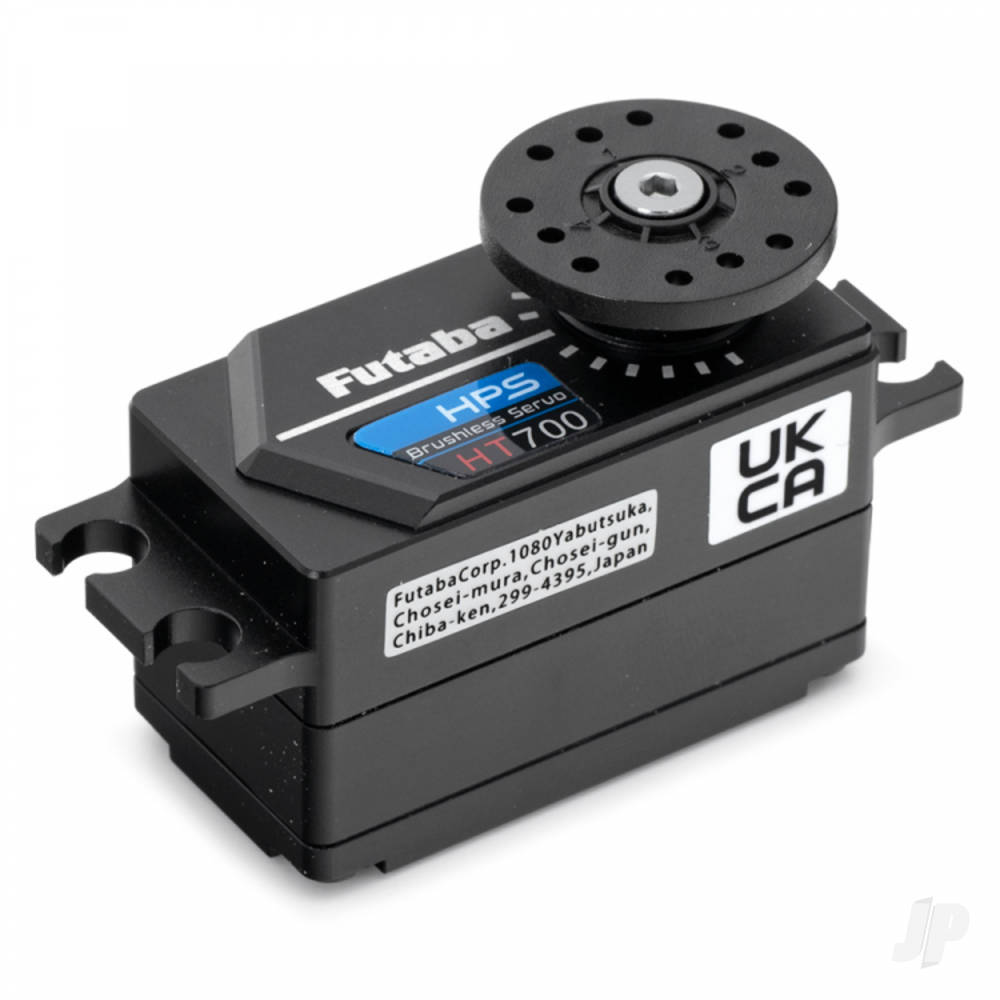

Futaba HPS-HT700 Low Profile Brushless Servo MG PWM/S.BUS2 9.6kg 0.045s 4.8V – 7.4V

Description

FEATURES

• Size: 40.5×21.0×26.2mm
• Weight: 56g
• Torque: 9.6kgf cm (7.4V) / 8.6kgf cm (6.6V)
• Speed: 0.045sec/60° (7.4V) / 0.05 sec/60° (6.6V)

CONTENTS

• 1x HPS-HT700 Low Profile Brushless Servo
• Horns
• Mounting Hardware

DETAILS

HPS-HT700 S.Bus2 High-Voltage Low-Profile Tail Servo
High Performance Tail Servo with Brushless Motor

Speed:
0.045 sec/60 (7.4V)
0.05 sec/60 (6.6V)

Torque:
9.6kgfcm (7.4V)
8.6kgfcm (6.6V)
133.3ozfin (7.4V)
119.4ozfin (6.6V)

Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.83 x 1.03 in

Weight:
54 g
1.90 oz

Rated Voltage:
DC 6.0V – 7.4V

Operating Voltage:
DC 4.8 – 8.4V

NO DRY BATTERY USE
