Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Specifications
Cont./Peak Current: 40A
Input Voltage: 2-3S LiPo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A 6A peak

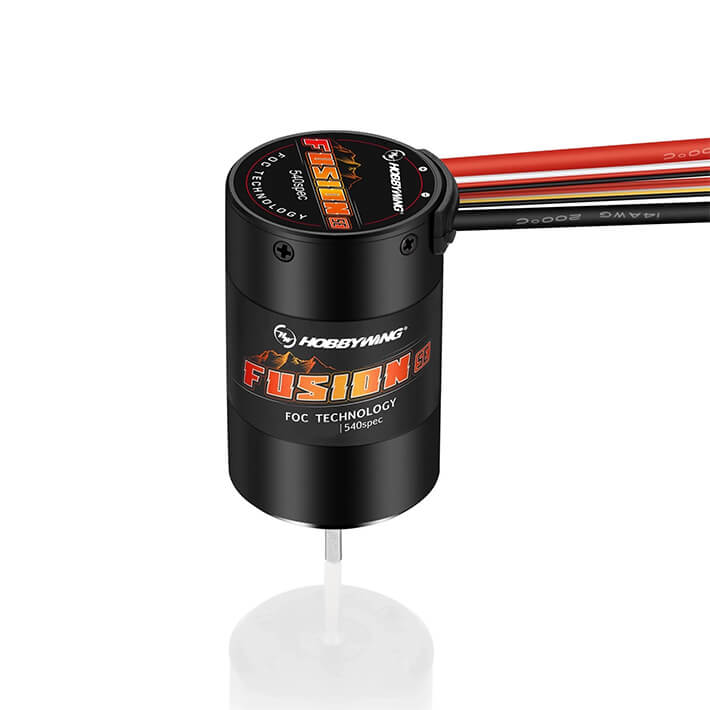

Motor KV: 1800KV
Diameter/Length of Motor: 36mm / 58.1mm
Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
Motor Poles:4
Wires & Connectors
Input Wires: Red-14AWG-200mm*1 /’ Black-14AWG-200mm*1
Input Connectors: XT60
(Note: All the wire length above is the original length, not the length you see from the outside.)
ESC Programming Via
SET Button on ESC: Not Supporterd
LED Program Box: Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface (Switch Positionm)
Firmware
Firmware Upgrade: Not Supported
Size & Weight
Size: 36 x 58.1mm
Weight: 201g (Including Wires and Connectors)
Applications
Venicles: 1/10th Rock Crawler
