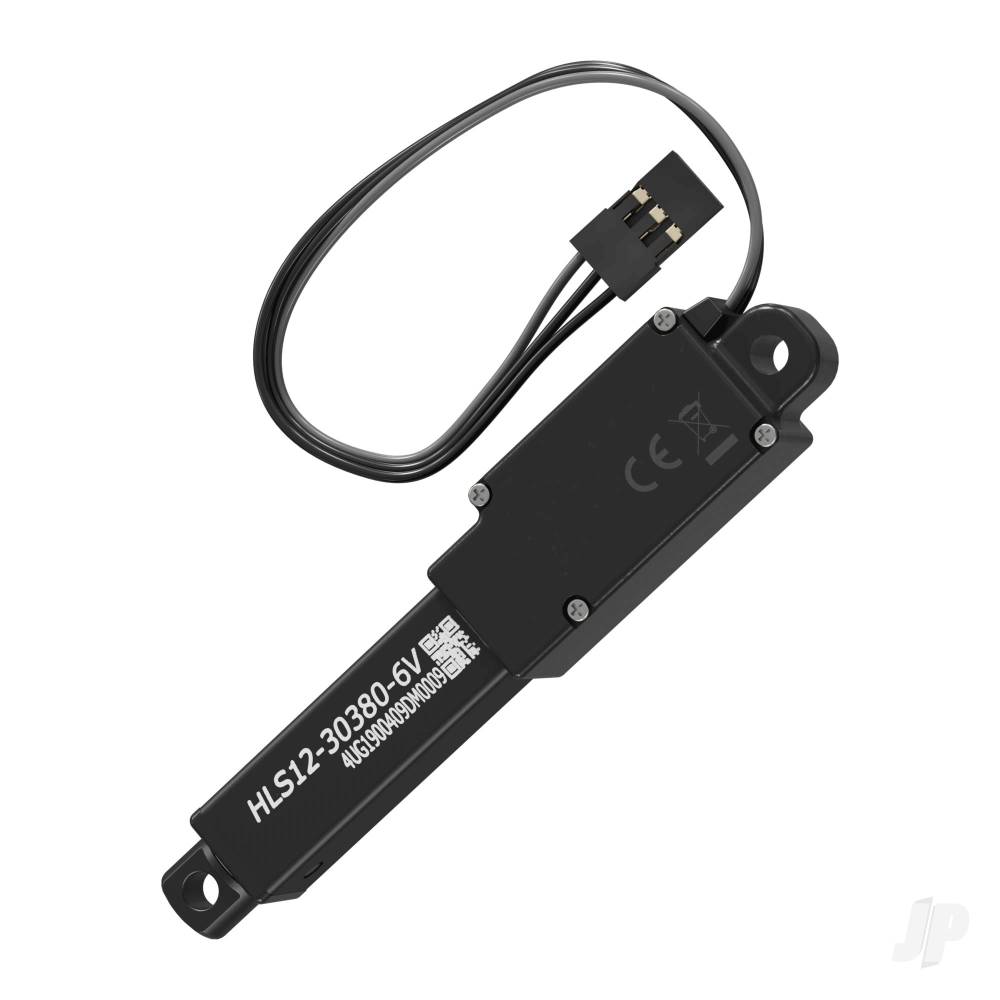

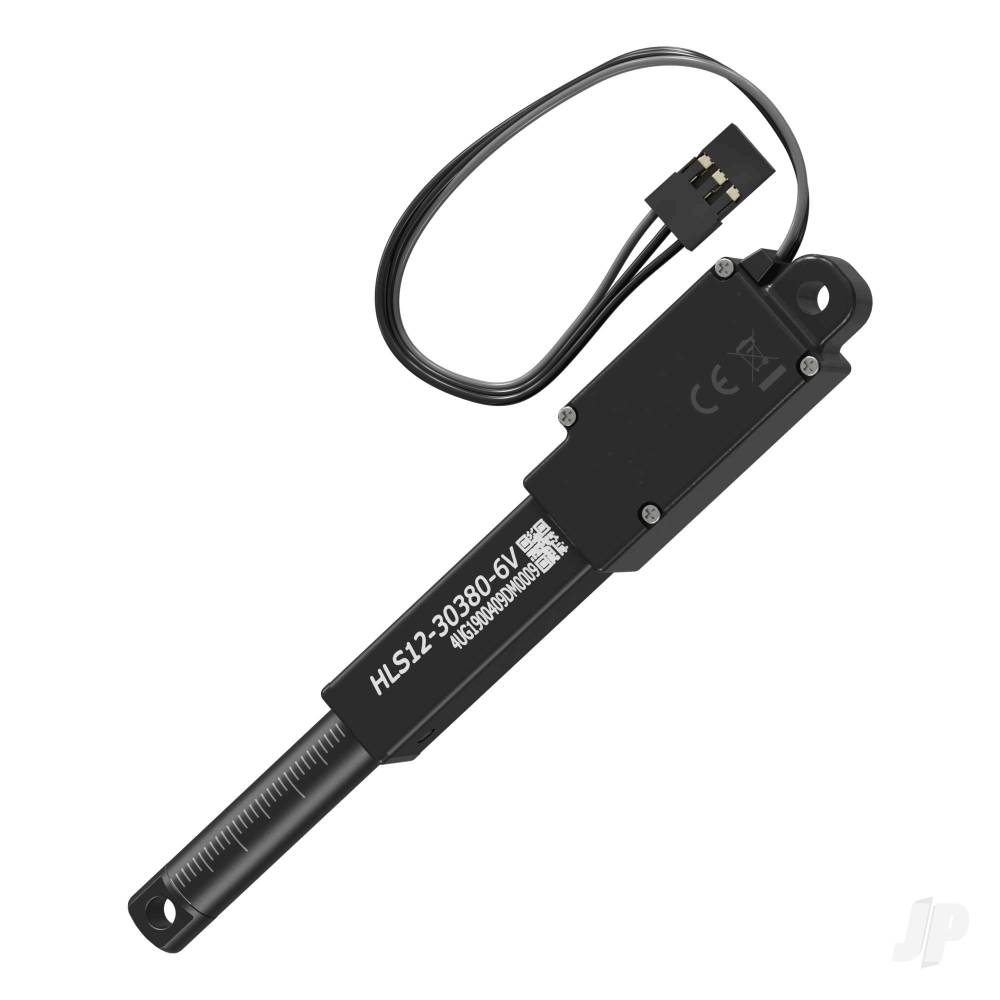

Hitec HLS12-30380-6V 30mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V – 8.4V

Description

FEATURES

• Command Protocol: PWM
• Lead Screw: 5mm
• Motor Type: Cored Metal Brush
• Operating Voltage (Volts DC): 4.0V ~ 8.4V
• Testing Voltage: 6.0V
• Gear Ratio: 380:1
• No Load Speed: 3.3mm/s
• No Load Current: 100mA
• Maximum Efficiency Point: Load (kg / N): 6.5 / 64 – Speed (mm/s): 2.5 – Current (mA): 200
• Pear Power Point: Load (kg / N): 10.0 / 98 – Speed (mm/s): 1.9 – Current (mA):300
• Max Force (Lifted): Load (kg /N): 12.0 / 118 – Speed (mm/s): 1.2 – Current (mA): 400
• Stall Force: 5.0kgf (49.03N)
• Stall Current: 500mA
• Max Static Force: 20.39kgf (200N) (above)
• Stroke SPEC: 30mm
• Repeatability: ±0.2mm
• Max Side Load (Extended): 4.08kgf (40N)

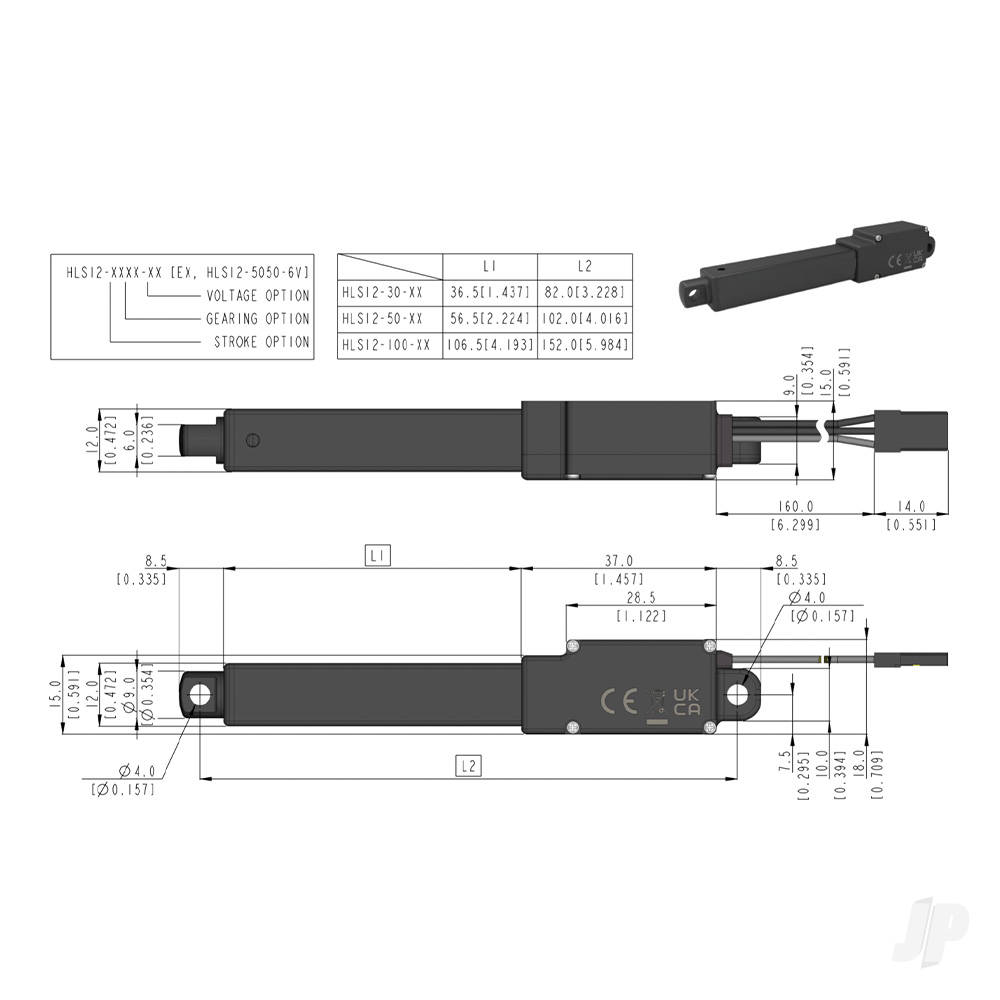

• Outline Dimensions: 82.0 x 15.0 x 18.0mm (3.23 x 0.59 x 0.71 in.)
• Weight: 34g (1.20 oz)
• Connector Wire Length: 160mm (6.29 in.)
• Connector Wire Gauge: 24AWG
• Bearing Type: Flange bearing
• Case Material: Engineering Plastic & Aluminium Pipe
• Gear Material: 4 Metal Gears
• IP Rating: IP4X
• Servo Amplifier Type: 32bit programmable Digital

DETAILS

With 30mm of travel and a 380:1 gear ratio, the HLS12-30380 is ideal for short stroke applications requiring maximum power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 – 1950s input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
