Description
FEATURES
- T-FHSS Air System
The 12K transmitter has adopted the bidirectional communication system “T-FHSS Air”. Data from the receiver can be checked in your transmitter. T-FHSS Air is a maximum 14 channels (linear 12 channels + switch 2 channels) 2.4 GHz dedicated system.
- S.BUS2 System
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
- Model Types
Six swash types are available for helicopters. Six types of main wings and three types of tail wings are available for airplanes, multicopters and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
- Data Input
The 12K is operated by a 6.0 V/1,800 mAh NiMH battery.
- Micro SD Card (Secure Digital Memory Card) *NOT INCLUDED
Model data can be saved to a micro SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T12K transmitter software files are released, the software can be updated by using a micro SD card update.
- Edit Button
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a push dial.
- Vibration Function
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
CONTENTS
- 1x T12K Transmitter
- 1x R3008SB Receiver
- 1x HT5F1800B NiMH Battery
- 1x Charger
DETAILS
Transmitter Specs
Transmitter Frequency:
2.4 GHz band
System:
T-FHSS Air, S-FHSS, switchable
Power Supply:
6.0 V HT5F1800B NiMH battery
Frequency Band:
2.4 Ghz
RF Power Output:
100mW EIRP
Receiver Specs

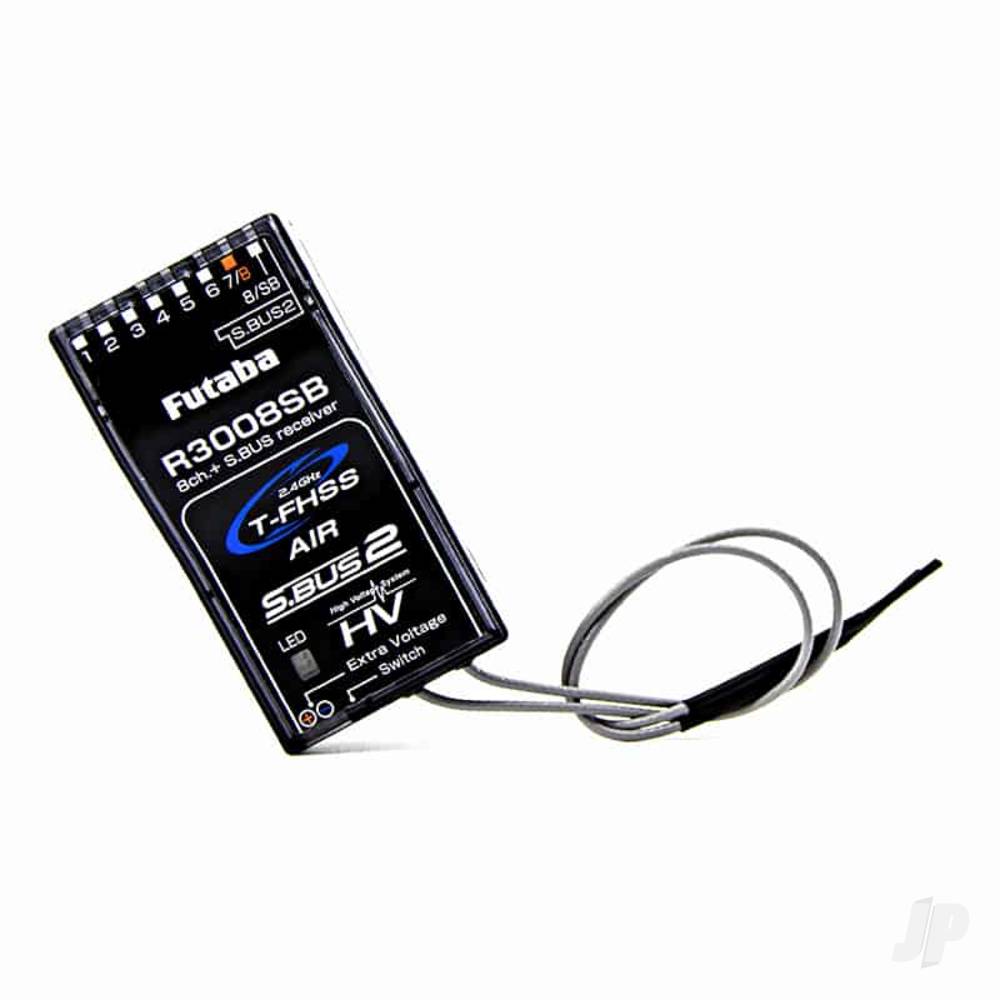

R3008SB
- Size:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56
- Weight:
10.1 g
0.36 oz.
- Rated Voltage:
DC 4.8 ~ 7.4V
- Operating Voltage:
DC 4.0 ~ 8.4V
R3001SB
- Size:
21.1 x 41.8 x 5.3 mm
0.83 x 1.65 x 0.21 in
- Weight:
4.2 g
0.15 oz.
- Power Requirements:
DC 4.8 ~ 7.4V
- Battery F/S Voltage:
Sets up with a transmitter
